Introduction
Many brands pour budget into display design and neglect the fabrication side — then pay for it on event day when panels don't align, graphics arrive creased, or setup runs three hours over schedule.
Event display design and fabrication covers the full journey from brand strategy to physical exhibit: concept development, structural engineering, material selection, production, and on-site installation. For B2B marketers, event managers, and brand teams, getting both sides right is what separates a high-performing display from an expensive disappointment.
Here's what this guide covers:
- The full six-step process from discovery to dismantle
- Design decisions that drive display performance
- Material and build strategy tradeoffs
- Fabrication mistakes that cost brands money and opportunities
Key Takeaways
- Fabrication is a structured, multi-phase process — not construction that begins at the last minute
- Locking design decisions on layout, graphics, and materials early directly controls timelines and costs
- Display configuration (inline, corner, peninsula, island) shapes every downstream structural decision
- Custom, modular, and hybrid builds each trade off differently on cost, reusability, and visual impact
- Pre-assembly before shipping is the critical quality control checkpoint — skip it and problems surface on event day
What Is Event Display Design & Fabrication?
Event display design covers the strategic and visual planning work: layout, brand integration, graphics, lighting, and traffic flow. Fabrication is the physical engineering and construction that turns those approved designs into event-ready structures.
The two disciplines are different but inseparable. A concept without fabrication discipline can't be built on time or on budget. A structure without design strategy won't engage the visitors standing in front of it.
How This Differs from "Setting Up a Display"
Full custom design and fabrication is not the same as assembling a portable banner system. The complete process involves:
- Discovery sessions and strategic briefing
- 3D concept rendering and spatial planning
- CAD engineering drawings with precise structural specifications
- In-house production across carpentry, graphics, and finishing
- Pre-assembly and full quality review before shipping
- Coordinated logistics, on-site installation, and post-show dismantle
Portable display assembly skips most of these phases. That works fine for small, simple setups. For branded environments where brand presence and visitor experience drive business outcomes, the full process is what makes the difference.

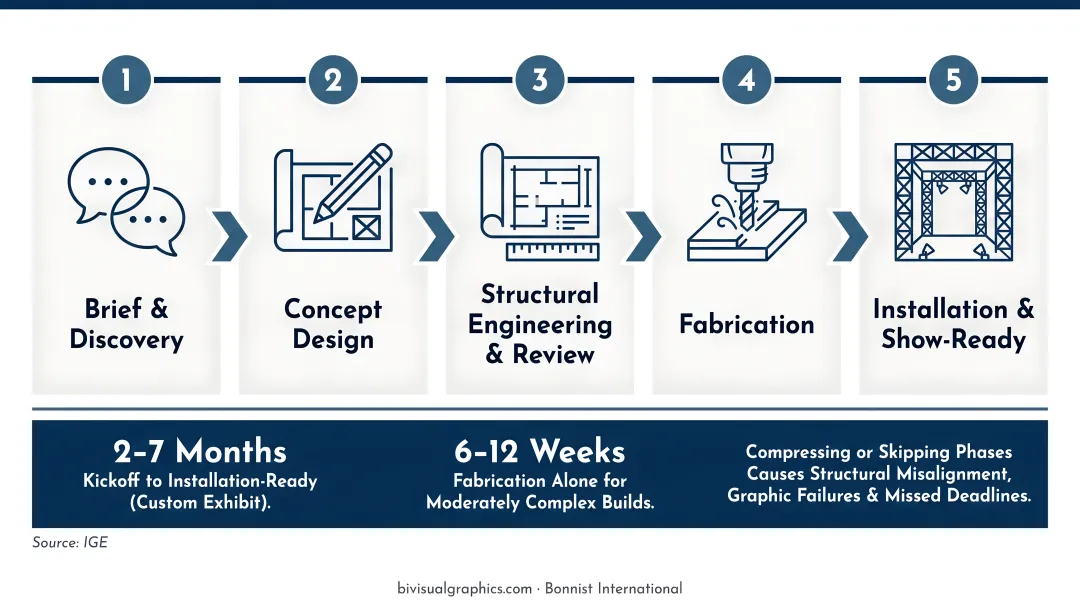

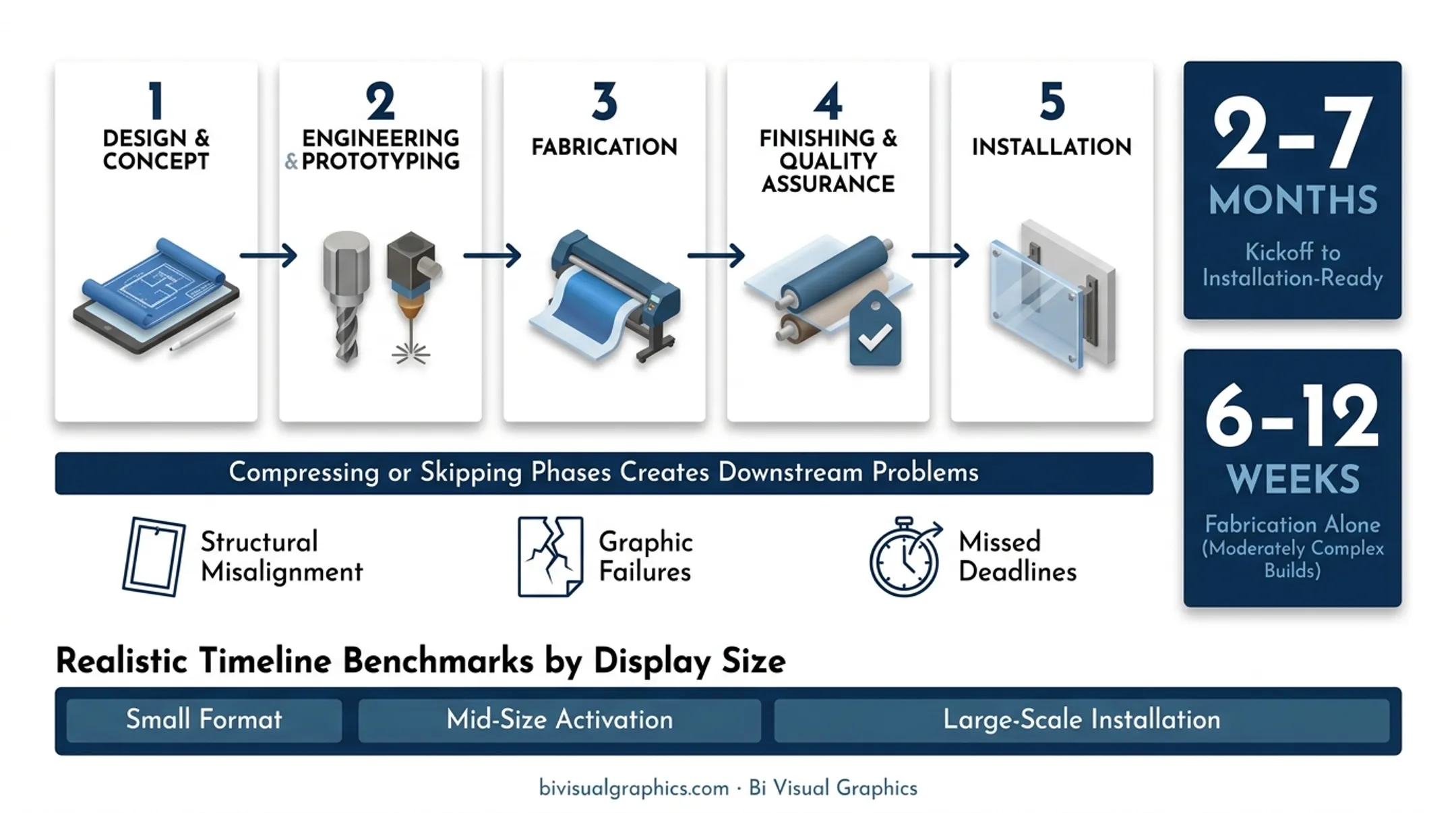

How the Event Display Design & Fabrication Process Works
The process is sequential. Compressing or skipping phases creates downstream problems — structural misalignment, graphic failures, missed deadlines. According to IGE, a custom display can take 2–7 months from kickoff to installation-ready, with fabrication alone running 6–12 weeks for moderately complex builds.
Realistic timeline benchmarks by display size:
| Display Size | Build Type | Typical Lead Time |
|---|---|---|
| 10×10 | Modular or simple custom | 6–8 weeks |
| 20×20 | Custom or hybrid | 12–16 weeks |
| Island (20×20+) | Full custom | 16–20+ weeks |
Step 1: Discovery & Strategic Briefing
The process begins with a structured discovery session — not design work. Goals, target audience, display footprint, venue requirements, brand guidelines, and budget are defined here. This brief governs every decision that follows. Skipping or rushing it forces costly corrections later.
Step 2: Concept Design & Creative Development
Designers translate the brief into spatial concepts: 3D renderings, floor plan layouts, traffic flow studies, and material mood boards. Clients are making structural and experiential decisions at this stage, not just approving aesthetics. Choices made here — open vs. closed layout, demo zones vs. meeting areas — shape fabrication scope.
Step 3: CAD Design & Engineering
Approved concepts convert into fully engineered CAD drawings specifying precise dimensions, material callouts, structural connections, and assembly sequences. This step locks fabrication costs. Changes introduced after CAD approval require rework across engineering, sourcing, and production — adding time and expense that compress every subsequent phase.
Step 4: Fabrication & Production
The production phase runs across coordinated teams:
- Structural carpentry and millwork
- Large-format graphic printing
- AV and technology integration
- Surface finishing and brand application
This is where brand storytelling becomes physical. Bonnist International's Inspired Fabrication approach, applied across events, branded environments, and custom displays, reflects how fabrication partners weave craft, design, and brand narrative into the physical build. Their work for clients including MSG, MetLife Stadium, and NYCFC shows what that level of production quality looks like in practice.
Step 5: Pre-Assembly & Quality Review
Before shipping, the entire display is erected in the shop. The team verifies structural fit, confirms graphic panel alignment, tests all lighting and AV systems, and walks the exhibit from the attendee's perspective. Corrections at this stage cost a fraction of what on-site fixes cost during event move-in — when labor rates are higher, time is compressed, and venue rules limit what you can change.
Step 6: Logistics, Installation & Dismantle
The display is broken down, inventoried, crated, and shipped according to venue-specific deadlines. On-site, experienced crews assemble in a documented sequence and conduct a final walkthrough before event open. Post-event dismantle and outbound freight coordination complete the cycle. Full-service fabrication partners own the logistics from crating to post-event return; that end-to-end accountability is what separates them from display supply vendors.
Key Design Principles That Make an Event Display Effective

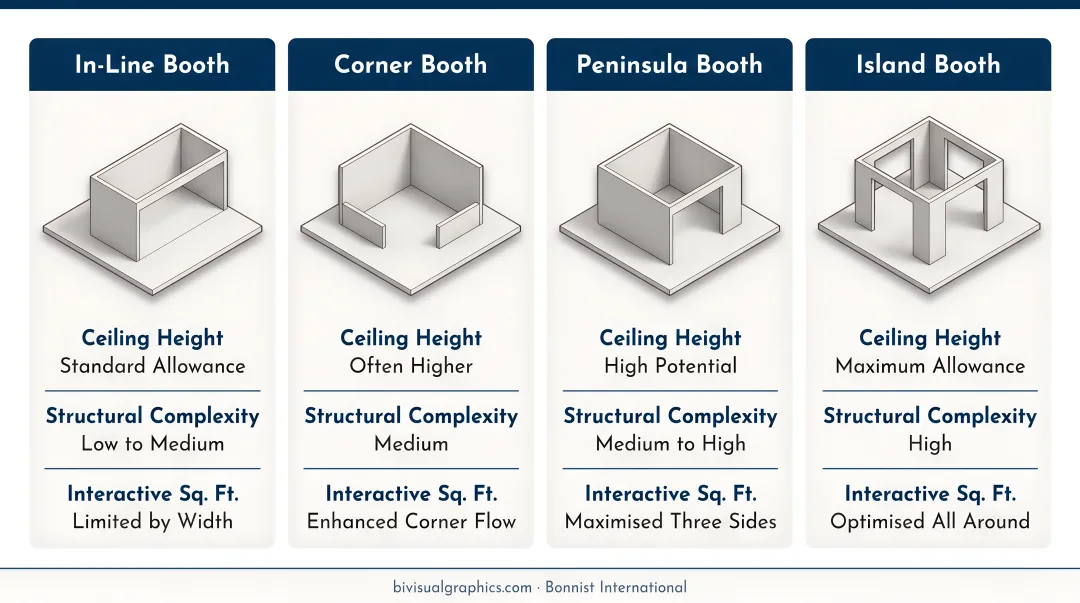

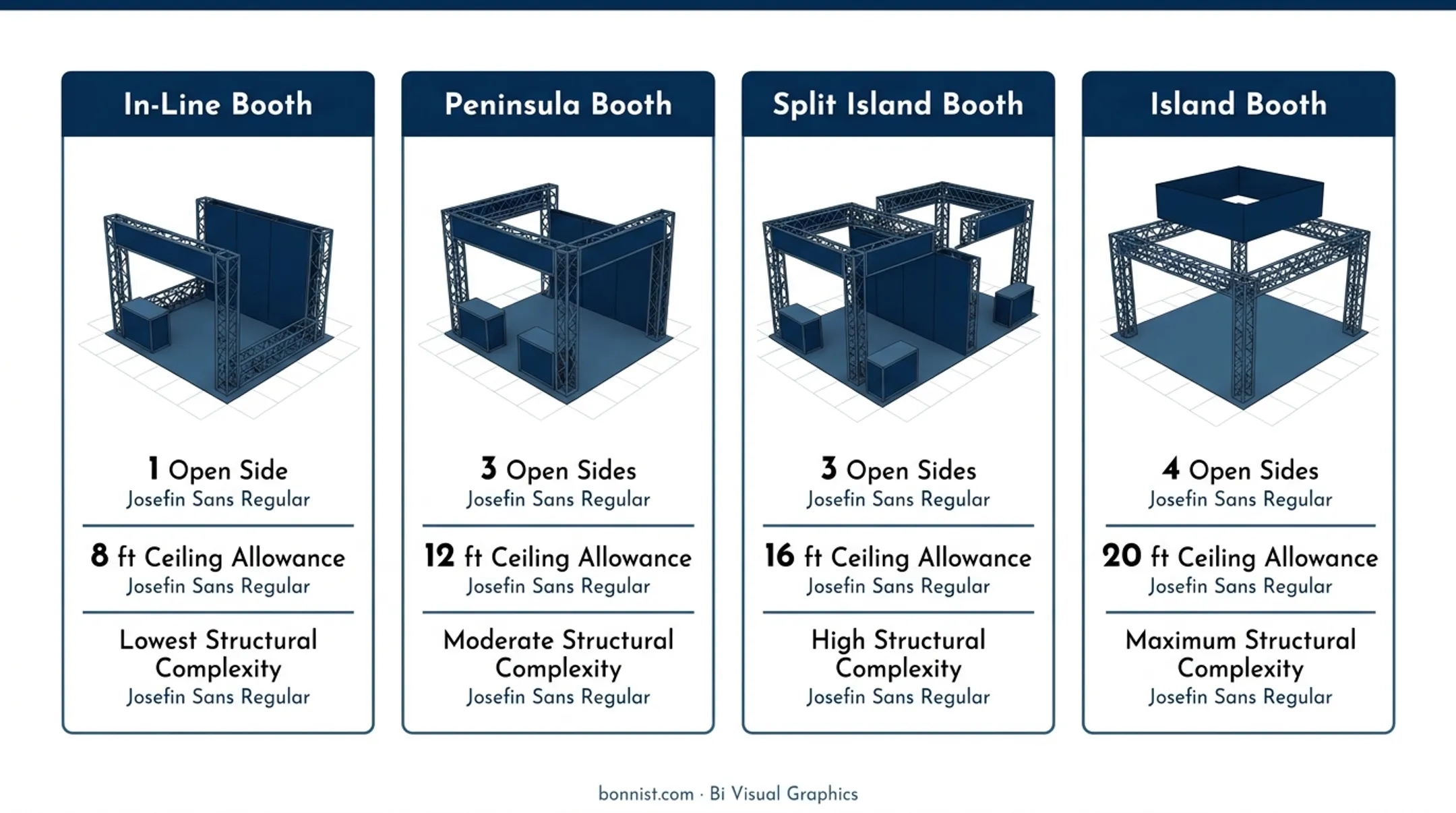

Display Configuration Drives Everything
IAEE defines four primary display types, each with different visibility profiles and design flexibility:
| Configuration | Aisle Exposure | Typical Size | Best For |
|---|---|---|---|
| Inline/Linear | 1 side | 10×10 | Brand awareness, tight budgets |
| Corner | 2 sides | 10×10 | Higher foot traffic, slight visibility premium |
| Peninsula | 3 sides | 20×20+ | Product demos, moderate investment |
| Island | All 4 sides | 20×20+ | Full brand immersion, high-traffic goals |
Your configuration choice shapes ceiling height allowances, structural complexity, and available square footage for interactive elements. Match it to your primary event objective before any design work begins.
Graphics Are Your Primary Communication Layer
EXHIBITOR research shows passersby give display graphics 3–5 seconds of attention. Your back wall graphic must communicate your core message in that window — which means 6–10 words maximum and high-contrast, bold visuals.
Two technical points that often get overlooked:
- Build files in CMYK, not RGB. Large-format presses print in CMYK — RGB files shift on output, flattening blues and stripping intensity from neon colors.
- Proof under venue lighting conditions. Fluorescent and LED event-floor lighting mutes reds and intensifies yellows — always approve final output under lighting that approximates the actual event environment.
The back wall graphic and its lighting are the two highest-impact investments in any display, regardless of size.
Traffic Flow Is a Functional Decision
Layout should guide visitors through intentional zones — demonstration areas, meeting spaces, product displays — in a sequence that supports your sales process. Open floor space signals approachability. Cluttered layouts discourage entry before a visitor ever reads your messaging.
Interactive Technology Requires Early Planning
Digital displays, touchscreens, and AV systems need to be scoped before structural design is finalized. Technology added late creates compounding problems:
- Mounting points not accounted for in engineering
- Power drops positioned in the wrong locations
- Cable runs with no clean path through the structure
- Staff left without adequate training time before the show opens
Interactive features should support your core brand message. When tech is the centerpiece rather than the story, visitors disengage fast.
Modular Systems Reduce Per-Event Costs
Design a base display — typically a 10×10 inline foundation — with interchangeable graphic panels, tension fabric displays, and SEG systems so components reconfigure for different footprints without a full structural rebuild. With tension fabric and SEG systems, fabric graphics swap independently of the frame — keeping your presentation current across multiple events without new structural investment. Bonnist International fabricates these systems for exactly this kind of multi-event reusability.
Materials, Display Types & Fabrication Decisions
Primary Materials in Modern Booth Fabrication
| Material | Strengths | Watch Out For |
|---|---|---|
| Aluminum extrusion | Lightweight, tool-free assembly, high reuse | Less premium feel at close range |
| Tension fabric / SEG | Seamless graphics, backlit capability, portable | Requires precise frame sizing |
| Laminated wood / hardwood veneer | Premium aesthetic, solid feel | Heavy = higher drayage costs |
| Acrylic / polycarbonate | Modern accents, dimensional depth | Fragile in transit, adds weight |
Material selection directly affects drayage costs. EXHIBITOR notes drayage is charged per CWT (hundredweight) — per 100 pounds, rounded up. At recent rates of $104.50–$176.75 per CWT at major events, a 400-pound difference in display weight costs $400–$700 in drayage alone at each event. Across a multi-event schedule, material choices compound significantly.

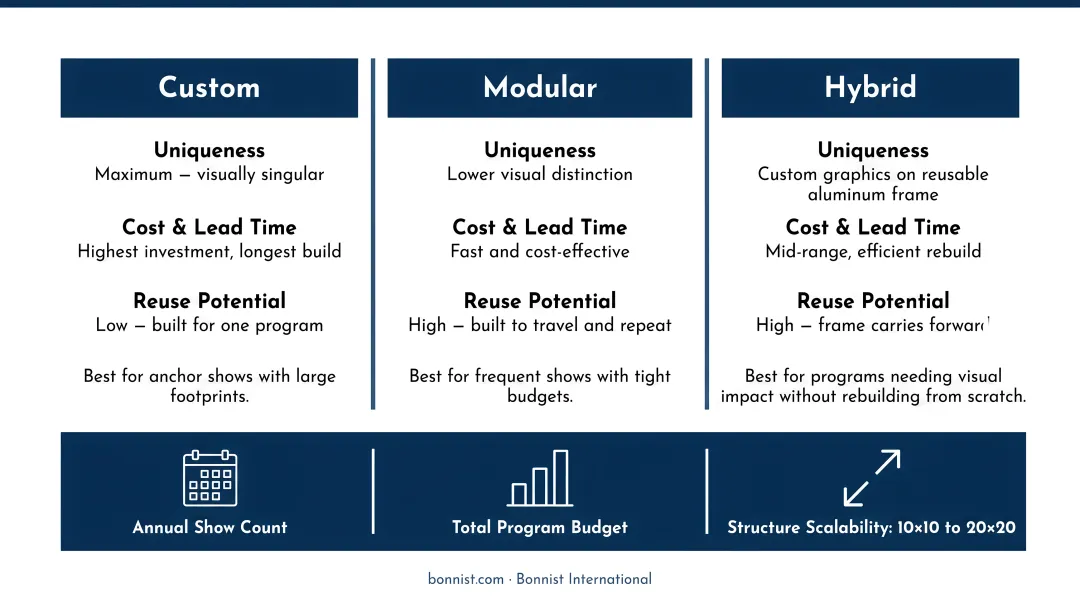

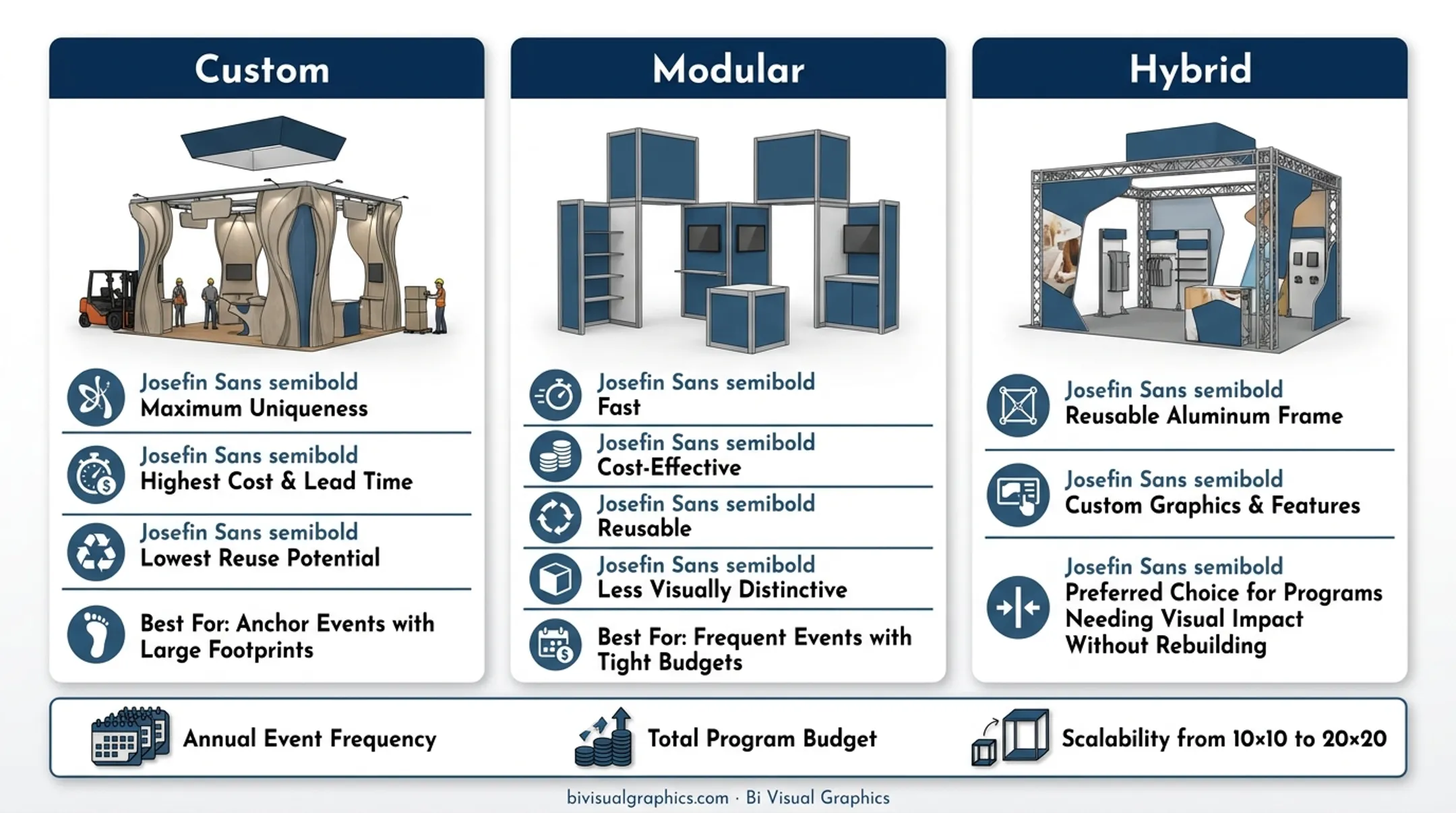

Three Build Strategies
- Custom: Maximum uniqueness, highest cost and lead time, lowest reuse potential. Best for anchor events with large footprints.
- Modular: Fast, cost-effective, reusable, less visually distinctive. Best for frequent events with tight budgets.
- Hybrid: Reusable aluminum frame with custom graphics and features. The preferred choice for programs that need visual impact without rebuilding from scratch — rental and hybrid approaches deliver flexibility without sacrificing continuity.
Choosing between these comes down to three factors: how many events you run annually, your total program budget, and whether the same structure needs to scale from a 10×10 to a 20×20.
Common Mistakes in Event Display Design & Fabrication
Most display problems trace back to decisions made (or avoided) before fabrication begins. These three mistakes account for the majority of costly mid-project corrections:
Starting too late. Compressing the fabrication timeline forces rush sourcing, limits design iteration, and eliminates pre-assembly — the phase most critical to catching structural and graphic problems before the event.
Treating design and fabrication as separate decisions. Layout choices, technology integrations, and material preferences must be resolved before engineering begins. Changes after CAD lockdown require rework across multiple production phases, adding cost and time your event schedule may not accommodate.
Overloading the display. More panels, more screens, and more graphics do not equal more engagement. Visitors decide whether to engage with a display within seconds. A clear focal point, strong visual hierarchy, and intentional open space consistently outperform busy, cluttered layouts.
Avoiding these mistakes early keeps your timeline intact and your design intent focused through every phase of production.
Frequently Asked Questions
How long does the event display design and fabrication process take?
Timelines vary by size and complexity: typically 6–8 weeks for a 10×10, 12–16 weeks for a 20×20 custom or hybrid build, and 16–20+ weeks for large island configurations. Starting early preserves time for design iteration without compressing production or eliminating pre-assembly.
What is the difference between a custom display and a modular exhibit?
Custom displays are built to spec from the ground up for a specific brand. Modular exhibits use pre-engineered components — faster and more reusable, but less distinctive. Hybrid builds pair reusable aluminum frames with custom graphics for strong ROI across multiple events.
What materials are used in event display fabrication?
Common materials include aluminum extrusion, tension fabric, SEG systems, engineered wood substrates, high-pressure laminates, acrylic, PVC panels, and steel. Material selection is driven by weight (drayage implications), durability, aesthetic goals, and expected event volume.
How much does it cost to design and fabricate an event display?
Rough benchmarks: modular displays run $50–$125/sq ft; hybrid builds $75–$225/sq ft; full custom builds $125–$325+/sq ft. Large island configurations (20×20 and above) often exceed $100,000 all-in once graphics, AV, drayage, and installation are included.
Can the same fabricated display be used at multiple events?
Yes — well-engineered hybrid aluminum builds are designed for repeated assembly and breakdown across multiple events. Graphic panels, particularly SEG fabric systems, can be swapped between events to keep the presentation current without requiring a new structural build.
What should I look for when choosing an event display fabrication partner?
Prioritize in-house engineering and production, documented pre-assembly with client sign-off, venue compliance experience, and end-to-end logistics support. Bonnist International — with 33+ years of fabrication experience on projects for MSG, MetLife Stadium, and major hospitality brands — handles all of this under one roof.
